Copper Hot Wedge Welding Machine SWT-NSGM1 1400W 230V

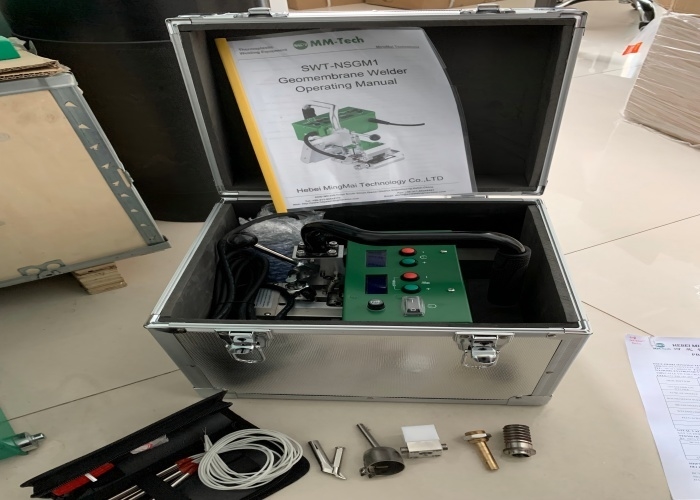

Gambar besar : Copper Hot Wedge Welding Machine SWT-NSGM1 1400W 230V

Detail produk:

Nama merek:	MM-TECH
Nomor model:	SWT-NSGM1

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1
Harga:	US$1425/set
Kemasan rincian:	Kotak Aluminium
Waktu pengiriman:	5-8 hari kerja
Menyediakan kemampuan:	1000 set/minggu

Kontak

Detil Deskripsi produk

Model:	SWT-NSGM1	Tegangan:	230V
Frekuensi:	50/60hz	Kekuatan:	1400W
Berat badan:	9kg	Lebar tumpang tindih:	12cm
Kecepatan pengelasan:	0,5-6m/menit	Suhu:	≥85% asli
lebar jahitan:	15mm*2, rongga interior 15mm	Ketebalan:	0,2-2mm
Menyoroti:	Copper hot wedge welding machine 1400W , Geomembrane welding machine 230V , SWT-NSGM1 welding machine copper wedge

Copper Hot Wedge Welding Machine SWT-NSGM1 Two Sides

Product Specifications

Attribute	Value
Model	SWT-NSGM1
Voltage	230v
Frequency	50/60Hz
Power	1400W
Weight	9kg
Overlap Width	12cm
Welding speed	0.5-6m/min
Temperature	≥85% Original
Seam width	15mm*2, interior cavity 15mm
Thickness	0.2-2mm

Product Description

The welding machine adopts advanced heat chip structure with high power and high pressure, featuring fast welding speed suitable for 1.0-3.0mm thick film material welding. It is suitable for HDPE, LDPE, PVC, EVA, ECB, PP and other hot melt materials.

Technical Data

Voltage	230v
Frequency	50/60Hz
Power	1400W
Weight	9kg
Overlap width	12cm
Welding speed	0.5-6m/min
Temperature	50-450℃
Seam strength	≥85% original
Seam width	15mm*2, interior cavity 15mm
Welding thickness	0.2-2mm
Feeding method	from two sides
Digital display	Temperature & Speed

Applications

Products are used in water conservancy, aquaculture, landfill, chemical and mining, sewage treatment, roof construction and other fields of waterproof and seepage control engineering.

Product Features

Control System: Advanced digital display, accurate control and strong protection
Motor System: Advanced style job design and pressure regulation structure
Pressure Roller: Imported silicone pressure roller of being flexible, heat resistance and wear resistance
Motor System: Customized metal hot wedge with powerful heating elements which higher heating frequency and longer life
