MM-Tech Mazinger 355i Hydraulic Butt Fusion Welding Machine 110-355mm

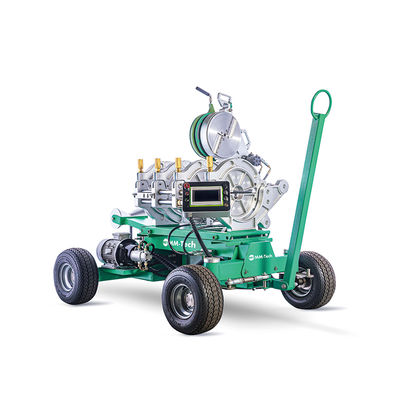

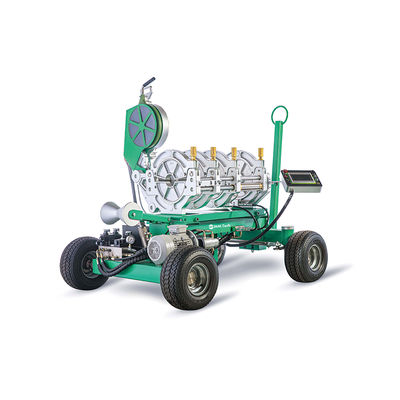

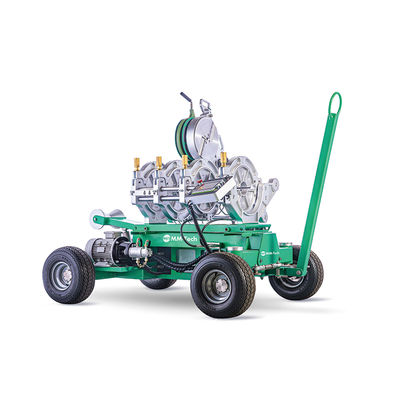

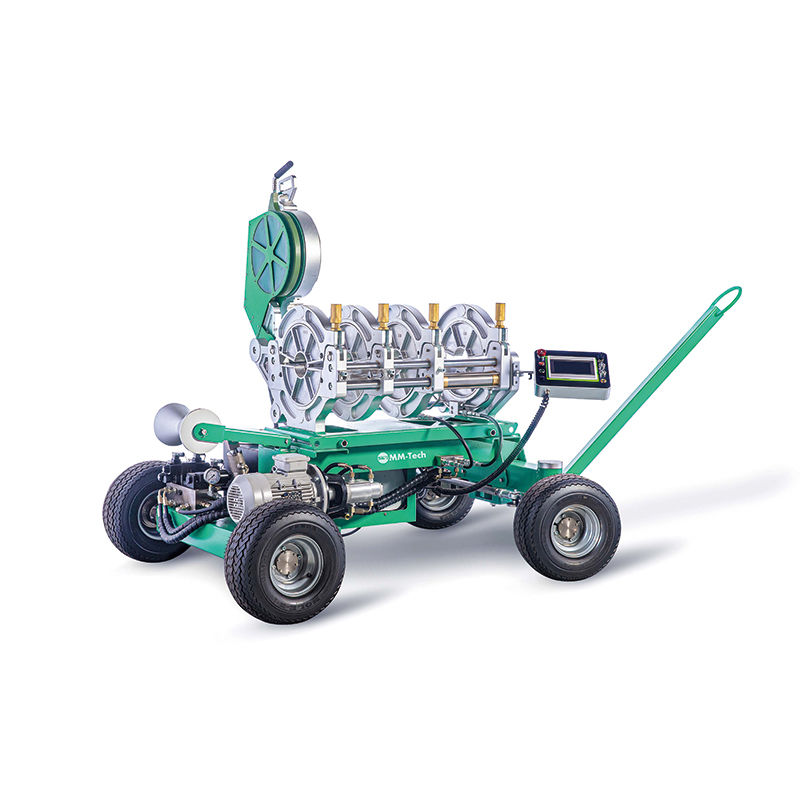

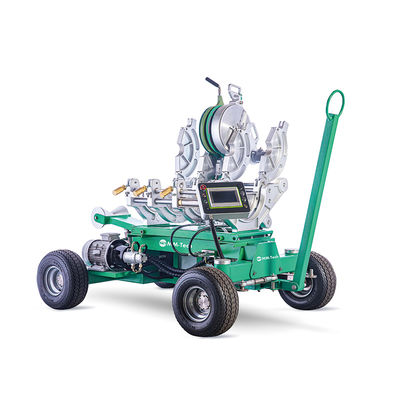

Gambar besar : MM-Tech Mazinger 355i Hydraulic Butt Fusion Welding Machine 110-355mm

Detail produk:

Tempat asal:	Cina
Nama merek:	MM-Tech
Sertifikasi:	CE & ISO
Nomor model:	Mazinger 355i
Dokumen:	Mazinger 355i 24i EN A.pdf

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1
Harga:	US$38,800.00
Kemasan rincian:	Karton kayu lapis
Waktu pengiriman:	5-8 hari kerja
Syarat-syarat pembayaran:	T/t
Menyediakan kemampuan:	1 set 30 hari

Kontak

Detil Deskripsi produk

Merek:	Mm-tech	Model:	Mazinger 355i
Rentang Pengelasan:	110-355mm	Warna:	Hijau
Sertifikat:	CE & ISO	Aplikasi:	Pengelasan pipa plastik
Bahan pengelasan:	HDPE PP PVDF PPH, dll	Tekanan Pengelasan:	Max 120bar
Garansi Kualitas:	24 bulan	Metode pengiriman:	Melalui udara, melalui laut, atau melalui darat
Metode pembayaran:	T/T 100% di muka atau 100% L/C pada penglihatan
Menyoroti:	MM-Tech Mazinger 355i hydraulic welding machine , butt fusion welding machine 110-355mm , hydraulic fusion welder with warranty

Trailor Butt Fusion Welding Machines 355mm HDPE Pipes for Mining

Features & Advantages

Standard: adhering to ISO21307 and ASTM F2620 High-force standards
Fully automated system featuring SIEMENS PLC technology
Ensures precision and reliability
Crafted from premium aluminum components for strength and accuracy
Dual-axis structural frame ensures even distribution of welding force
On-board heating plate with protection frame and insulated shield
On-board high-capacity trimmer driven by hydraulic power
Removable machine chassis for in-ditch use
Dragging bar designed to weld between the 3rd and 4th clamp
Removable trimmer for welding short spigot
Single-size insert with quick install/release system
Strong jaws and inserts prevent pipe slipping during fusion
Hydraulic pipe lift for loading and unloading pipes
Data logger (PEWELDBANK) compatible (manual version)
Removable control panel with data-logging, memory for 30000 welding reports; USB port for data download/firmware upgrade
Easy operation with single-button welding procedure

Certification

CE & ISO Certificates

Frequently Asked Questions

What is The Warranty Period Of MM-TECH HDPE Fusion Machine?

All machines made by MM-TECH are under a 2 years warranty since dispatched from MM-TECH factory. For more details, please consult with MM-TECH sales and view MM-TECH WARRANTY CERTIFICATE.

What standards of Thermoplastic Pipe are applicable?

Welding standard according to Germany Standard: DVS2207-1-2016
International Standard: ISO21307-2017
America Standard: ASTM F2620-19 (high pressure)
America Standard: ASTM F714-13

How Could We Select The Right Equipment For Our Project?

MM-TECH offers a variety of pipe fusion machine sizes up to 3000mm O.D. Each machine has a model number indicating the maximum pipe size it can fuse. For example, butt fusion machine V630 can fuse maximum pipe 630mm O.D. Please consult with MM-TECH sales for specific project requirements.

How Long Should it Take To Make A Fusion Joint?

Time needed depends on welding norms, pipe material, diameter, wall thickness, and operator experience.

How Could We Calculate The Soaking Time?

Proper soaking time varies depending on pipe material, diameter, and wall thickness. Refer to MM-TECH operation manual for polyethylene welding machine specifications.

After Welding, Could We Lay Down The Jointed Pipes On The Ground For Cooling Process?

No. Jointed pipes must remain in the machine with/without pressure (according to welding norms) until cooling time ends.

Quality Warranty

24 months warranty on machines. If any main parts fail under normal operation, we provide replacements free of charge.

After-sales Service

24/7 after sales service available
