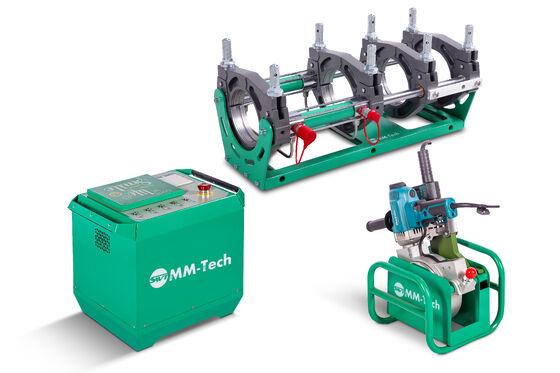

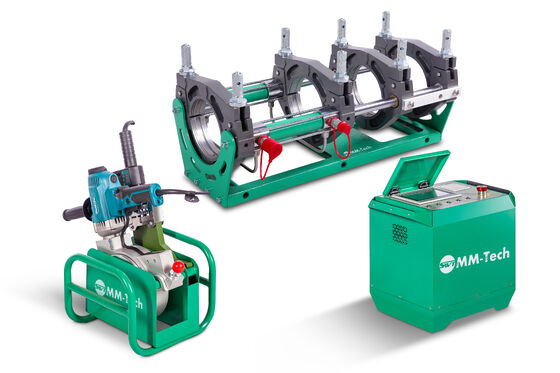

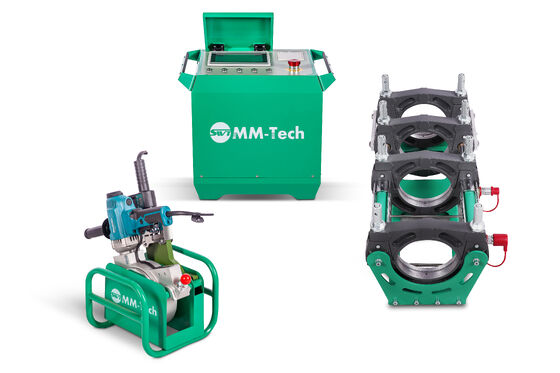

63mm-200mm Automatic CNC HDPE Butt Welding Machine

Gambar besar : 63mm-200mm Automatic CNC HDPE Butt Welding Machine

Detail produk:

Tempat asal:	Hebei, Tiongkok
Nama merek:	MM-TECH
Sertifikasi:	CE
Nomor model:	SWT-V200/63A

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1
Harga:	USD7,200/set
Kemasan rincian:	3 kasus kayu lapis
Waktu pengiriman:	Dalam 7 Hari
Syarat-syarat pembayaran:	T/T, Western Union, Paypal
Menyediakan kemampuan:	10/set per bulan

Kontak

Detil Deskripsi produk

voltase:	230V	Frekuensi:	50/60Hz
Jenis:	Sepenuhnya Otomatis	Nilai Daya:	3.0kw
Rentang Pengelasan:	63 - 200mm	Penggunaan:	Anda dapat mengajukan pengembalian dana hingga 30 hari setelah produk diterima.
Jaminan Kualitas:	24 Bulan	Merek:	Mm-tech
Model:	SWT-V200/63A	Bahan yang bisa dilas:	HDPE PP PVDF dan bahan termoplastik lainnya
Warna:	hijau	Aplikasi:	Sistem Pipa
Menyoroti:	63mm-200mm HDPE pipe welding machine , automatic CNC butt fusion welder , HDPE pipe butt welding machine with warranty

Automatic 63 - 200mm HDPE Butt Fusion Welding Machine

Butt Fusion Welding Machine Introduction

The MM-TECH V-CNC series automatic hydraulic butt welding machines are applied to joint PE, PP, PPR and PVDF pipes and moulded fittings. Selection of components with a long service life ensures a low maintenance and repair, friendly and reliable operation.
Due to the unique powertrain, it could not only create sufficient hydraulic power during welding procedure, but also it makes sure the precise control. And most importantly, it greatly reduce the weight of control box. And the servo-motor applied significantly reduce the failure possibility and maintenance cost.

Butt Fusion Welding Machine Datasheet

Model	SWT-V200/63A
Welding Range O.D.(mm)	63 - 200mm
Reducer Inserts	63,75,90,110,125,140,160,180
Power Supply	230V 50/60Hz
Rated Power(kW)	3.0
Piston Area(cm²)	6.27
Overall N.W./G.W.(kg)	110kg/140kg

Butt Fusion Welding Machine Application

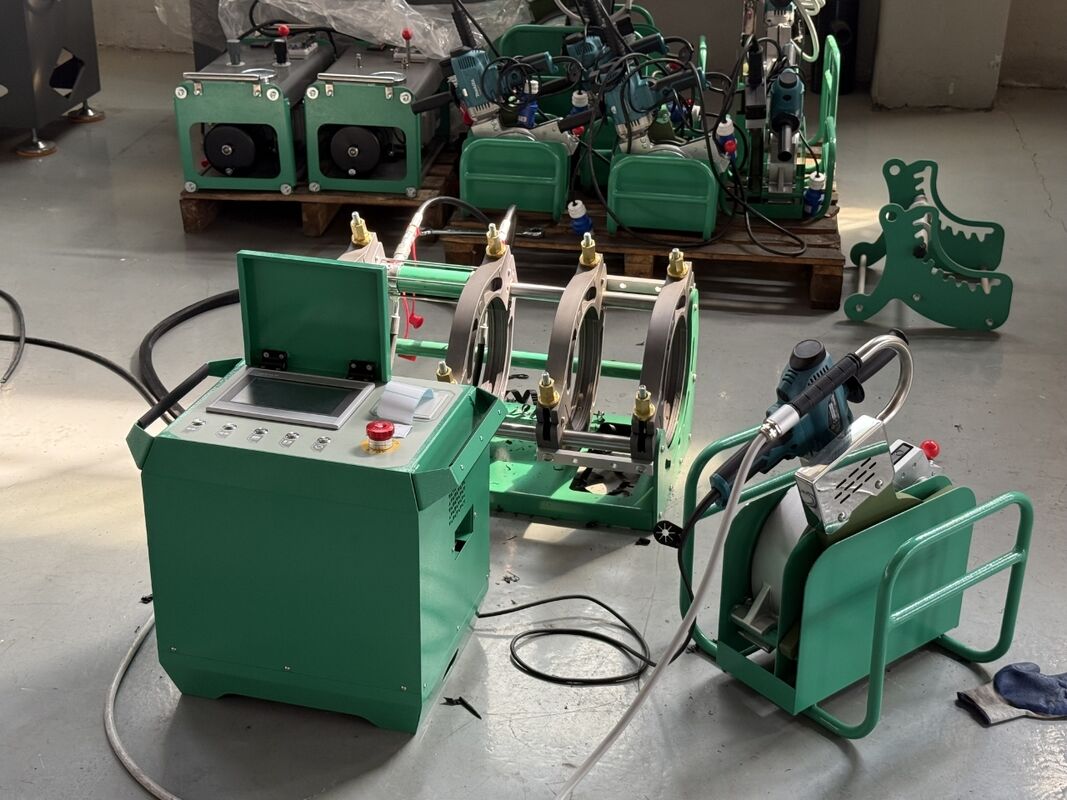

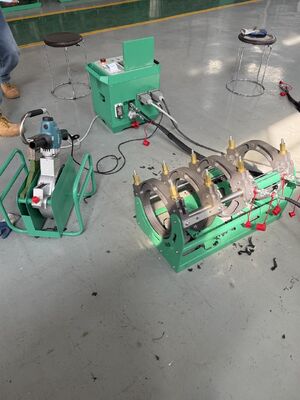

63mm-200mm Automatic CNC HDPE Butt Welding Machine 0

Exhibition

63mm-200mm Automatic CNC HDPE Butt Welding Machine 1

Quality Guarantee	2 years
Delivery Time	Within 7 days
