Automatic Butt Fusion Welding Machine for HDPE 200mm 450mm SDR17 SDR11

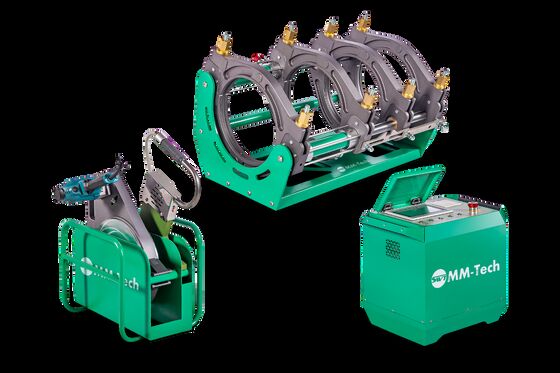

Gambar besar : Automatic Butt Fusion Welding Machine for HDPE 200mm 450mm SDR17 SDR11

Detail produk:

Tempat asal:	Hebei, Tiongkok
Nama merek:	MM-TECH
Sertifikasi:	CE
Nomor model:	SWT-V450/200A

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1
Harga:	USD15,000/set
Kemasan rincian:	3 kasus kayu lapis
Waktu pengiriman:	Dalam 7 Hari
Syarat-syarat pembayaran:	T/T, Western Union, Paypal
Menyediakan kemampuan:	4/set per bulan

Kontak

Detil Deskripsi produk

voltase:	400v	Frekuensi:	50/60Hz
Nilai Daya:	8.3KW	Rentang Pengelasan:	200 - 450mm
Penggunaan:	Anda dapat mengajukan pengembalian dana hingga 30 hari setelah produk diterima.	Jaminan Kualitas:	24 Bulan
Merek:	Mm-tech	Model:	SWT-V450/200A
Warna:	hijau	Aplikasi:	Sistem Pipa
Jenis:	Sepenuhnya Otomatis	Bahan yang bisa dilas:	HDPE PP PVDF dan bahan termoplastik lainnya
Menyoroti:	Automatic HDPE pipe fusion welder , HDPE butt welding machine 450mm , HDPE SDR17 fusion welding equipment

200 - 450mm Automatic SDR17 HDPE Butt Fusion Welding Machine

Butt Fusion Welding Machine Introduction

The MM-TECH V-CNC series automatic hydraulic butt welding machines are applied to joint PE, PP, PPR and PVDF pipes and moulded fittings. Selection of components with a long service life ensures a low maintenance and repair, friendly and reliable operation.
The CNC hydraulic control box is available for all MM-TECH basic model machines, covering the size from O.D 50mm through O.D 1200mm. Fully encased control box makes the protection level up to IP 54.
When heating plate hook up with machine chassis, inserting or release the heater will be controlled remotely by hydraulic unit, which is same as trimmer. These characteristics prevent the operators from being injured.

Butt Fusion Welding Machine Specifications

Model	SWT-V450/220A
Welding Range O.D.(mm)	(200 - 250)*280-450
Reducer Inserts	(200,225,250)*,280,315,355,400
Power Supply	400V 50/60Hz
Rated Power(kW)	8.30
Piston Area(cm²)	22.37
Overall N.W./G.W.(kg)	395kg/476kg

Butt Fusion Welding Machine Fusion Varities

Automatic Butt Fusion Welding Machine for HDPE 200mm 450mm SDR17 SDR11 0

Butt Fusion Welding Machine Application

Automatic Butt Fusion Welding Machine for HDPE 200mm 450mm SDR17 SDR11 1

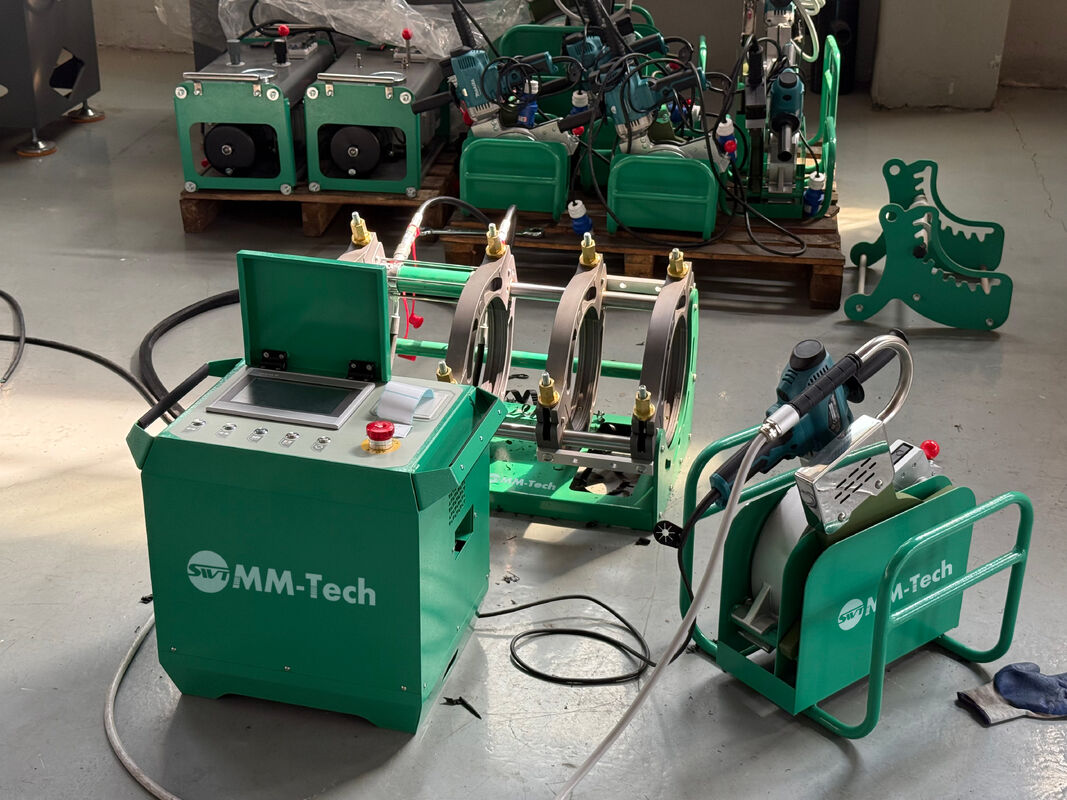

Factory

Automatic Butt Fusion Welding Machine for HDPE 200mm 450mm SDR17 SDR11 2

Delivery Time

24 months-- If any parts broken or doesn't work under normal operating, we provide them for free.
