220V CX600 Geomembrane Hot Wedge Welding Machine for 0.8-4.0mm Thickness with Copper Hot Wedge

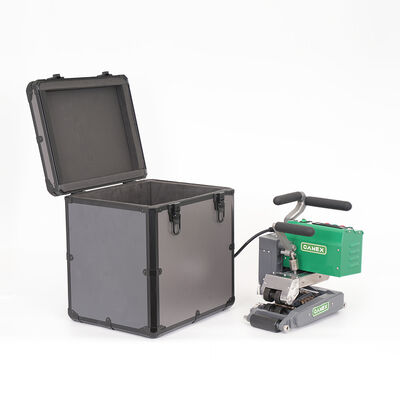

Gambar besar : 220V CX600 Geomembrane Hot Wedge Welding Machine for 0.8-4.0mm Thickness with Copper Hot Wedge

Detail produk:

Tempat asal:	Cina
Nama merek:	MM-Tech
Sertifikasi:	CE
Nomor model:	CX600

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1set
Harga:	US$2250-US$2300/set
Kemasan rincian:	Kotak aluminium
Waktu pengiriman:	5-8 hari kerja
Syarat-syarat pembayaran:	T/T, Western Union
Menyediakan kemampuan:	1000Set seminggu

Kontak

Detil Deskripsi produk

GW:	16.5kg	Cara Pengelasan:	Sisi yang sama
Voltase:	220V	Frekuensi:	50Hz
Kekuatan:	1400W	Kecepatan las:	0-8m/mnt
Ketebalan bahan las:	0,8mm-4mm	Pemanas temeperature:	0-450 ℃
Berat Bersih:	11.5kg

0.8-4.0MM CX600 Geomembrane Hot Wedge Welding Machine For Fishpond

220V CX600 Geomembrane Hot Wedge Welding Machine With 5-Year Warranty

CX series geomembrane welding machines are equipped with copper or brass hot wedges to ensure efficient and accurate welding processes, meeting the welding requirements of membranes made from different materials. The bearings throughout the machine are imported from Germany, providing excellent stability and durability that effectively extends equipment service life and ensures long-term stable operation.

These welding machines are suitable for geomembranes with thickness ranging from 0.3-4.0mm. They are easy to operate and deliver excellent performance, making them ideal choices for geomembrane welding projects. The hot air guns feature replaceable welding nozzles to adapt to different welding needs, and they utilize imported heating elements to ensure long-term stable operation at high temperatures.

Technical Specifications

Voltage	220V
Frequency	50HZ
Power	1400W
Welding Speed	0-8m/min
Heating Temperature	0-450℃
Welding Material Thickness	0.8mm-4mm
Weld Seam Strength	≥85% original material
Overlap Width	120mm
Net Weight	11.5kg
Certificate	CE

Key Features

Temperature and speed controlled by computer chip programming with LCD digital display
Equipped with copper hot wedge - thermal conductivity 4 times better than brass with secure screw fixation
Water-resistant design with 50mm wading depth and curved tube heating cartridge
German-imported bearings throughout the machine
Advanced helical gear transmission technology in gearbox
Stainless steel armored temperature sensor resistant to acid and alkali corrosion

Product Advantages

Main Frame Design

Main frame constructed from aviation aluminum, die-cast and painted surface for lightweight strength

Precision Bearings

CNC-machined bearing positions using Japanese IKO needle roller bearings and German NSK deep groove ball bearings

Digital Display Screen

Computer chip programming controls temperature and speed with LCD digital display

Pressure Adjustment

Ergonomic double handle design with high-strength spring pressure nut for easy adjustment

Hot Wedge

Copper hot wedge provides superior thermal conductivity and secure screw fixation

Heating Cartridge

50mm water-resistant capability with curved tube design heating cartridge

Applications

Mining: Mine wastewater treatment, waste residue treatment, tailings leakage prevention
Environmental Engineering: Landfill sites, sewage treatment plants
Aquaculture: Aquaculture ponds, fish ponds, shrimp ponds, and similar applications
