SWT-PH4000 Sheet Butt Welder For HDPE Tanks Fabricating in France Factory

Gambar besar : SWT-PH4000 Sheet Butt Welder For HDPE Tanks Fabricating in France Factory

Detail produk:

Tempat asal:	Hebei, Tiongkok
Nama merek:	MM-TECH
Sertifikasi:	CE, ISO
Nomor model:	SWT-PH4000

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1SET
Harga:	USD26,000.00 - USD36,000.00 per set
Kemasan rincian:	KOTAK KAYU
Syarat-syarat pembayaran:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Menyediakan kemampuan:	500 set per tahun

Kontak

Detil Deskripsi produk

Nama Produk:	Mesin Pengelasan Fusi Sheet Butt	voltase:	380V
Frekuensi:	50/60Hz	Fase:	3P
Ketebalan las:	3-40mm	Panjang kerja maks:	4000 mm
Bahan pengelasan:	HDPE, PP, PVC, PVDF	Fungsi:	Pengelasan Horisontal, Pengelasan Melingkar, Pengelasan Vertikal 90° sebanyak dua lembar
Sertifikat:	CE	Aplikasi:	Truk Pemadam Kebakaran, Kolam Renang, Pengolahan Air Limbah, dll
Menyoroti:	HDPE tank sheet welder , plastic sheet butt welding machine , France factory HDPE welder

Sheet Butt Welder Market Sector

Fire Trucks, Salmon Farming, Acquaculture, Electroplating equipment, environmental protection equipment, chemical containers, sewage treatment, etc

Sheet Butt Welder Specification:

Model	SWT-PH4000
Weldable sheet thickness(mm)	3.0-40.0
Max working length(mm)	4000
Roll circle diameter minimum(mm)	500
Air pressure(kg.f/cm²)	6.0-8.0
Energy source(m³/min)	0.0032
Rated voltage(V)	380V
Rated current(A)	23A
Heating Plate Power(kW)	8kW
Rolling Motor Power(kW)	3kW

Sheet Butt Welder Features:

Our machine is suitable for all types of thermo plastic sheet (PP, HDPE, HDPE, PVDF, PVC), with welding thickness 3-30mm.
Our machine support horizontal welding, circular welding and 90° vertical welding by two sheets.

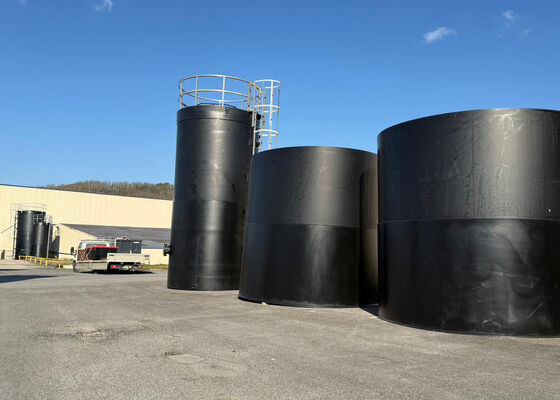

Sheet Butt Welder Exhibition:

SWT-PH4000 Sheet Butt Welder For HDPE Tanks Fabricating in France Factory 0

After-Sales Service:

We can provide free training service to our customers at our factory.

We can also provide on-site training to our customers on their request. The accomodation fees will be borne by them.
