3M HDPE Sheet Butt Welding Machine Deployed in France Biggest Factory

Gambar besar : 3M HDPE Sheet Butt Welding Machine Deployed in France Biggest Factory

Detail produk:

Tempat asal:	Hebei, Tiongkok
Nama merek:	MM-TECH
Sertifikasi:	CE, ISO
Nomor model:	SWT-PH4000

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1SET
Harga:	USD22,000.00 - USD26,000.00 per set
Kemasan rincian:	KOTAK KAYU
Syarat-syarat pembayaran:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Menyediakan kemampuan:	500 set per tahun

Kontak

Detil Deskripsi produk

Nama Produk:	Mesin Las Butt Lembar HDPE 3M	voltase:	380V
Frekuensi:	50/60Hz	Fase:	3P
Ketebalan las:	3-30 mm	Panjang kerja maks:	3000 mm
Bahan pengelasan:	HDPE, PP, PVC, PVDF	Fungsi:	Pengelasan Horisontal, Pengelasan Melingkar, Pengelasan Vertikal 90° sebanyak dua lembar
Sertifikat:	CE	Aplikasi:	Truk Pemadam Kebakaran, Kolam Renang, Pengolahan Air Limbah, dll
Menyoroti:	HDPE sheet welding machine , plastic sheet butt welder , industrial HDPE welding equipment

3M HDPE Sheet Butt Welding Machine Sector

Fire Trucks, Salmon Farming, Acquaculture, Electroplating equipment, environmental protection equipment, chemical containers, sewage treatment, etc

3M HDPE Sheet Butt Welding Machine Specification:

Model	SWT-PH3000
Weldable sheet thickness(mm)	3.0-30.0
Max working length(mm)	3000
Roll circle diameter minimum(mm)	500
Air pressure(kg.f/cm²)	6.0-8.0
Energy source(m³/min)	0.0032
Rated voltage(V)	380V
Rated current(A)	15.5A
Heating Plate Power(kW)	6kW
Rolling Motor Power(kW)	3kW

Sheet Butt Welder Features:

Our machine is suitable for all types of thermo plastic sheet (PP, HDPE, HDPE, PVDF, PVC), with welding thickness 3-30mm.
Our machine support horizontal welding, circular welding and 90° vertical welding by two sheets.

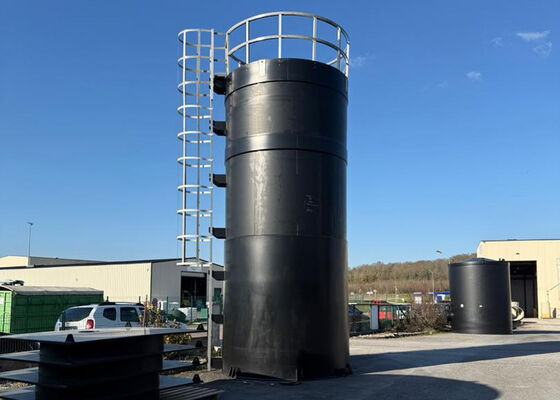

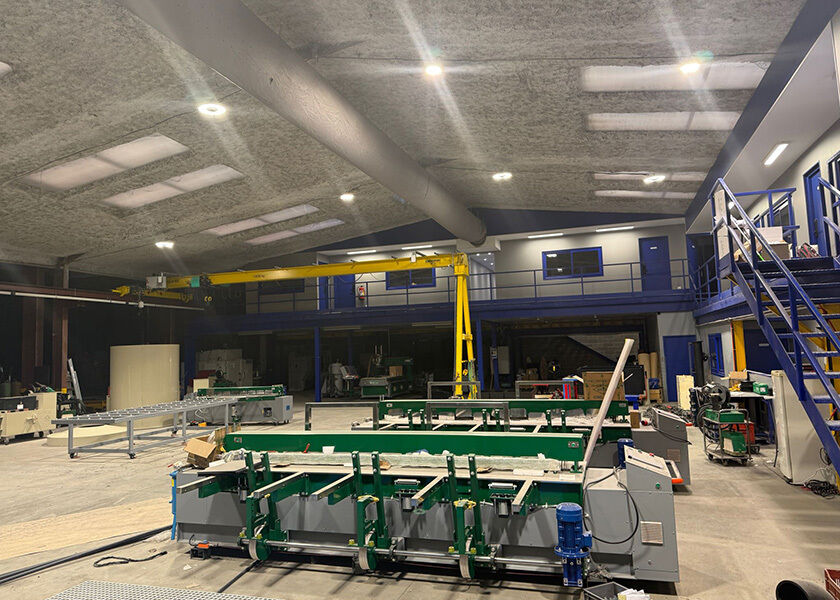

Sheet Butt Welder Exhibition:

3M HDPE Sheet Butt Welding Machine Deployed in France Biggest Factory 0

After-Sales Service:

We can provide free training service to our customers at our factory.

We can also provide on-site training to our customers on their request. The accomodation fees will be borne by them.

Label:

Kontak Person: Tony Bone

Tel: +8616619970365

Faks: 86-311-68009658
